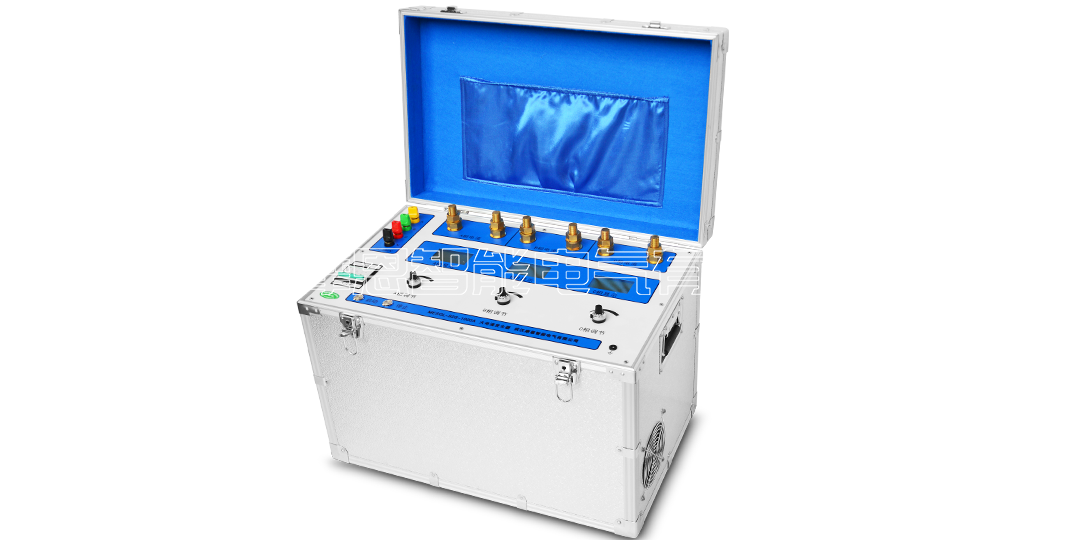

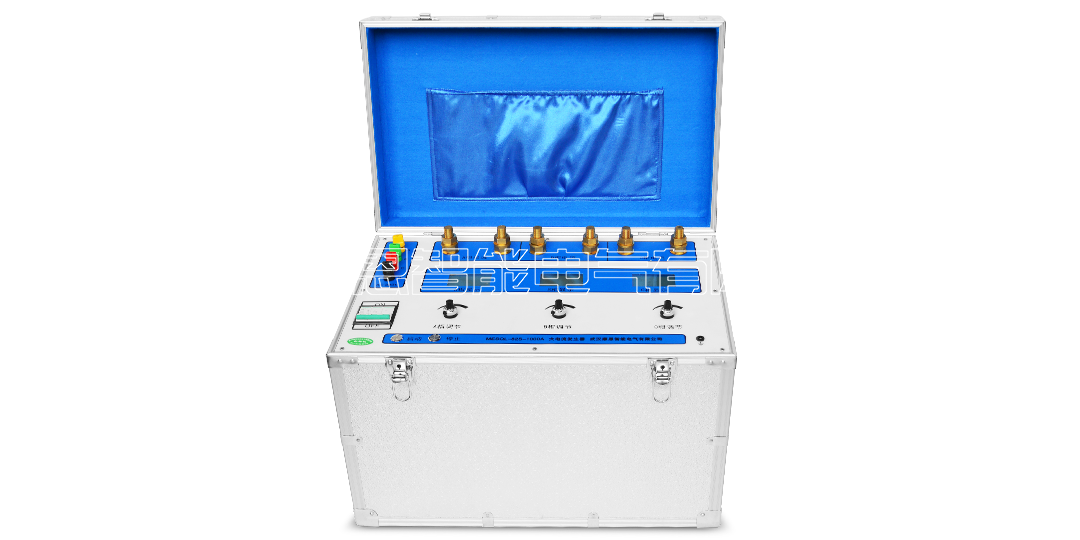

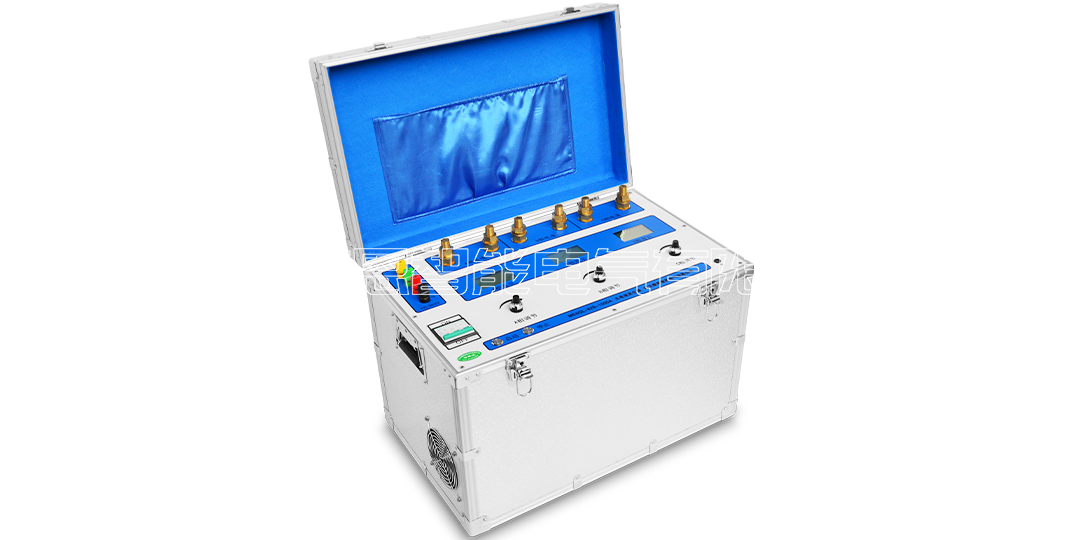

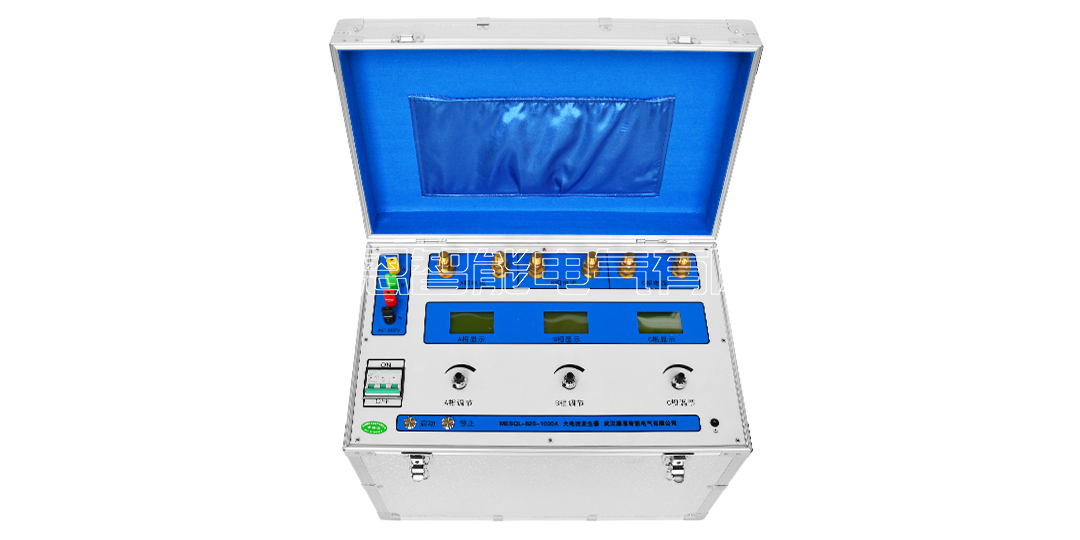

MESQL-82S-1000A high current generator, referred to as (referred to as three-phase current booster), is a test equipment developed by our company. It combines the advantages of similar products at home and abroad, adopts CNC technology, and has strong anti-interference ability. Compared with the previous generation of current boosters, it has the advantages of high output power, small size, and light weight due to the use of low-power, large-capacity electronic voltage regulators and converters made of high-permeability iron cores. It is mainly used for thermal relays, motor protectors, contactors, breakers, air switches, switch cabinets, circuit breakers, and protection screens.
1. Adopt beautiful PVC panel
2. Directly display the primary current, which is convenient for test observation and recording.
3. High measurement accuracy 0.5 level
4. High power, small size, strong load capacity
5. Small size, light weight, the volume is only 30% to 70% of similar products, the chassis has casters, which is easy to move.
1. Environmental group: Group III instruments in GB6287.1-86 "General Principles of Environmental Test for Electronic Measuring Instruments" (i.e., they can be used in outdoor environments).
2. Input voltage: AC 380/220V 50Hz three-phase four-wire
3. Power: 1kVA 1*3 pcs
4. Output current: AC0～1000III steplessly adjustable, panel with digital display ammeter
5. Output voltage: >3V
6. Output waveform: The output current is a standard sine wave with tiny burrs, which is better than the power system requirement index standard, and the ripple factor is less than 0.3%. Standard sine wave.
7. Measurement accuracy: (using 0.2S grade materials) is actually around 0.3; each current can be adjusted smoothly and continuously, with an accuracy higher than 0.5 grade. The current and voltage meter display is true effective value, with high accuracy and stability.
8. Output current mode: true effective value continuously adjustable
9. Current stability: 0.2%
10. Structure: integrated
11. Wiring method: as required
12. Protection settings: overcurrent, overvoltage
